AU8000 Rotary Atomiser for Knapsack Mistblowers

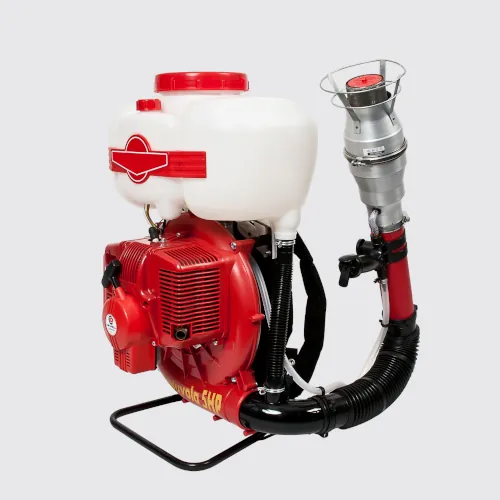

The Micron AU8000 Sprayer is a highly efficient knapsack mistblower using rotary atomiser technology originally developed by Micron for agricultural aircraft applications. The knapsack incorporates a 17 litre chemical tank and a 2-stroke engine driving a highly efficient air blower. A flexible air duct connects the blower to an AU8000 sprayhead. This contains a rotary atomiser which is driven by adjustable fan blades in the airstream from the blower. The atomiser is fitted with a cylindrical metal gauze which produces spray droplets of a precisely controlled size by rotary atomisation. The airstream carries the droplets safely away from the sprayer and ensures complete penetration and coverage of the target.
Chemical flows from the knapsack tank to the atomiser via an interchangeable restrictor tube for reliable and accurate control of application rate. The moulded handle of the sprayhead incorporates an easily operated on/off valve for control of output.
Cost effective
The Micron AU8000 saves time and money in many ways including:
- Lower application rates enabling greater areas to be sprayed per tank with less re-filling time to ensure maximum productivity
- Air assistance and controlled droplet size ensure efficient penetration of dense foliage
- Minimum use of water simplifies spraying in arid areas
- Elimination of run-off and wastage result in reduced chemical usage
Applications
The versatility of the Micron AU8000 knapsack mistblower makes it ideal for a wide range of applications. These include:
- Control of migrant pests such as locust, armyworm, quelea etc.
- Public health spraying against flies, mosquitos and other insect vectors of disease etc.
- Pest control in warehouses, storage areas etc.
- Pest and disease control in orchards, vegetables, rice, cotton, tea, coffee etc.
- Spraying inside greenhouses and plastic tunnels
The wide flow range and adjustable droplet size give the sprayer considerable versatility. It can therefore be used for any application rate or type of chemical from ultra low volume to several hundred litres per hectare.
As well as being supplied as part of a complete sprayer, the AU8000 Sprayhead is also available as a conversion kit for suitable mistblowers. The kit includes connecting tubes, handle/ control valve, restrictors and all attachments needed to replace a standard mistblower outlet. This kit is suitable for most types of 5HP machine. For satisfactory operation, the air output from the mistblower must be 100–125 m/sec at the outlet.
Safe for the operator and the environment

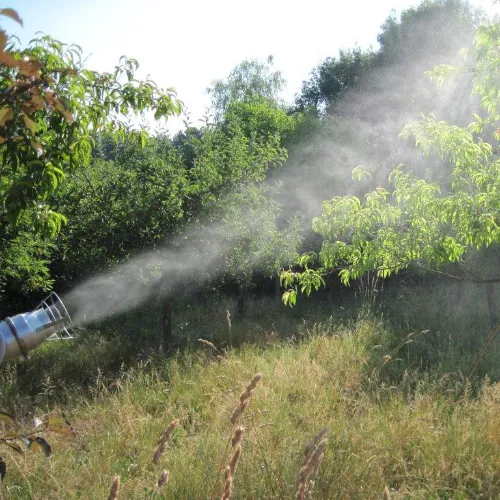

The airstream from the sprayhead carries spray droplets away from the operator and ensures that they are safely deposited on the target. This minimises the risk of operator contamination and drift. The controlled droplet size enables a minimum amount of carrier liquid and chemical to be used, whilst ensuring that the maximum amount is deposited where it is needed. This eliminates the problem of run-off in agricultural spraying and greatly assists in the control of chemical residues on fruit and vegetables. In public health and migrant pest spraying, the elimination of large, wasteful droplets ensures good control with a minimum of chemical.
“The AU8000 sprayhead is working great attached onto my Solo 451 Mist Blower, as well as with my liquid formulations. I am filtering the liquids through a 100 mesh screen prior to spray application.
I have sprayed a series of different types of plants which includes blueberries, various garden vegetables ( tomatoes, potatoes, carrots, brussel sprouts, broccoli, beans, beets), ¼ acre of hops and pear trees. I am spraying on a weekly basis to reduce the negative effects of insects. I have also used the sprayer on our hostas and roses.“
Michael J. Flynn, Owner
BioSpecific, Wisconsin
Downloads
AU8000 Brochure (English) (PDF 762 Kb)
AU8000 Brochure (Español) (PDF 811 Kb)
AU8000 Brochure (Français) (PDF 293 Kb)
AU8000 Brochure (Русский) (PDF 313 Kb)
AU8000 Brochure (Turkish) (PDF 645 Kb)
AU8000 Manual (English) (PDF 481 Kb)
AU8000 Manual (Français) (PDF 494 Kb)
AU8000 Manual (Русский) (PDF 762 Kb)
AU8000 Manual (العربية) (PDF 658 Kb)
Public Health Catalogue Micron-IK (English) (PDF 3578 Kb)
Public Health Catalogue Micron-IK (Español) (PDF 2300 Kb)
Public Health Catalogue Micron-IK (Français) (PDF 2301 Kb)
Public Health Catalogue Micron-IK (Português) (PDF 2894 Kb)
Public Health Catalogue Micron-IK (русский) (PDF 3190 Kb)
Public Health Catalogue Micron-IK (Arabic) (PDF 7072 Kb)
Specifications
AU8000 Sprayhead | Tank and Blower | ||
---|---|---|---|
Length: | 30 cm | Chemical tank capacity: | 17 litres (max.) |
Diameter: | 15 cm | Weight (empty): | 10.7 kg |
Weight: | 1.5 kg | Engine: | 77 cc, 5HP (3.6 kW) 2-stroke |
Air inlet tube diameter: | 65 mm | Fuel tank capacity: | 2 litres |
Chemical flow rate: | 0.02–1.20 litres/min | Fuel consumption: | 2 litres/hour approx |
Spray droplet size: | Adjustable: | Blower output: | 20 m³/min |
40–80 µm (VMD) for Environmental Health | Air velocity: | 125 m/sec at outlet | |
50–100 µm (VMD) for migrant pest control | |||
100–200 µm (VMD) for other applications |
