Compression Sprayers CS10 & CS14 for Indoor Residual Spraying (IRS)

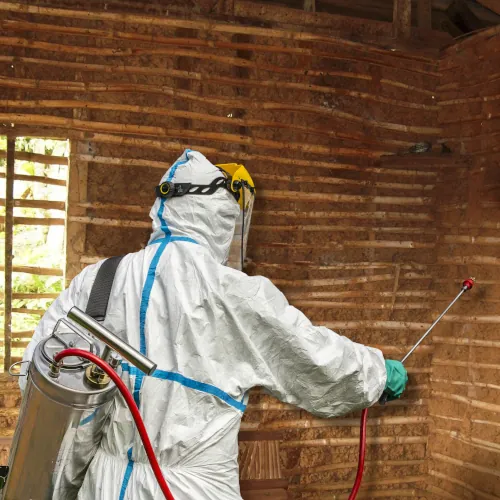

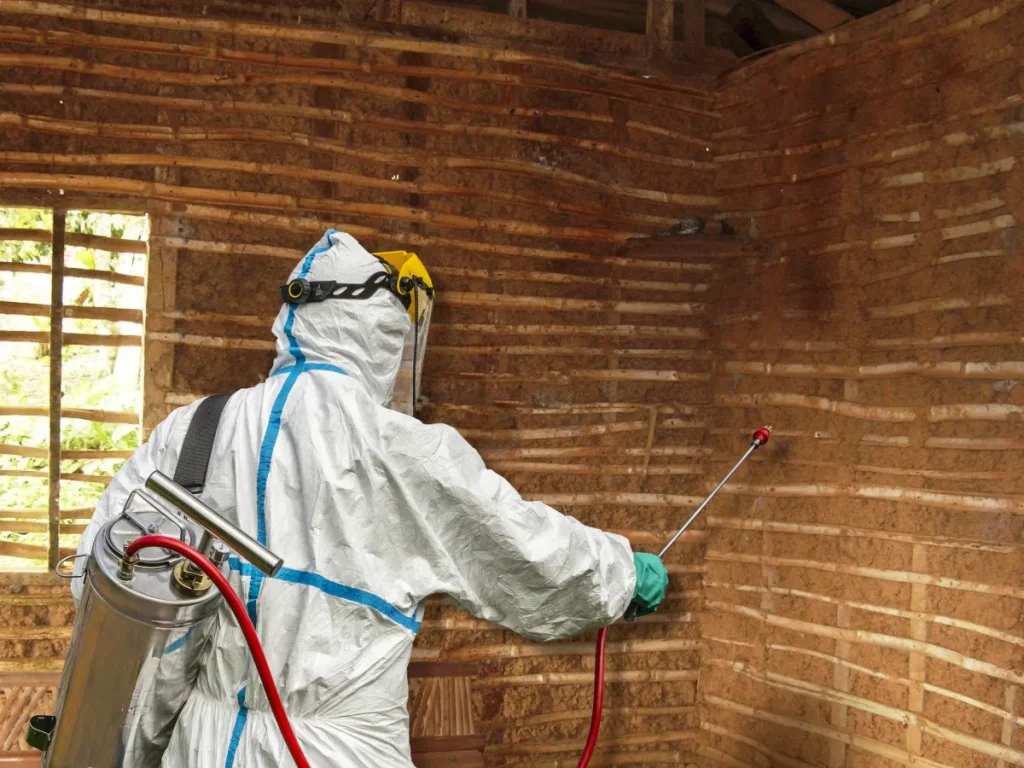

Micron CS10 and CS14 compression sprayers have been specifically designed for indoor residual spraying (IRS) to combat malaria, leishmaniasis, dengue fever and other insect borne diseases. The can also be used for crawling insect control in residential areas and the application of specialist industrial spray treatments that require materials that resist degradation by aggressive chemicals.

The sprayers are manufactured from quality grade stainless steel and brass and are available in two sizes (CS10 & CS14 models). Both CS10 and CS14 products fully comply with international standards for vector control equipment; certificates are available on request.

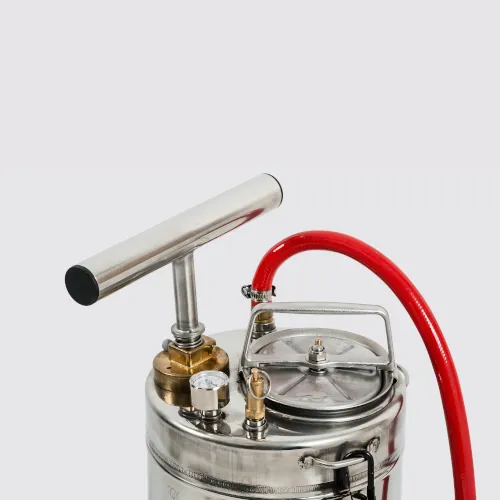

Stainless steel tank, pump cylinder, handle, lance and trigger valve body
Pressure gauge (0–7 bar) with maximum operating pressure indicator
Pressure relief valve set to 4.5 bar
Chemical resistant VitonTM and specialist fluoroelastomer cup seals
Large filling aperture with stainless steel lid and over-centre latch

Specifications

	CS10	CS14
Tank capacity:	11.4 l	13.6 l
Tank dimensions (Diameter x Height):	20 cm x 45.5 cm	20 cm x 53.5 cm
Packing dimensions (Diameter x Height):	21 cm x 61 cm	21 cm x 65 cm
Weight (empty):	4.8 kg	5.1 kg
Weight (shipping):	5.3 kg	5.8 kg
Max working pressure:	4.2 bar (60 PSI)	3.8 bar (55 PSI)

	CS10 & CS14
Tank material:	Stainless steel
Pump cylinder:	Stainless steel with Viton™ non-return valve
Pump handle:	T-type stainless
Pressure gauge:	0–7 bar (0–100 PSI)
Pressure relief valve:	Operates at 4.5 bar (66 PSI)
Filler lid:	Oval 12 x 10 cm with over-centre latch & automatic pressure relief valve
Trigger valve:	Brass with Viton™ O-rings & stainless steel lever and body
Spray lance:	57 cm long, strainless steel
Spray hose:	150 cm long
Carrying strap:	Double woven heavy duty, 50 mm wide
Spray nozzle:	Teejet™ 8002E stainless steel tip supplied as standard; Optional Micron C8002 even spray ceramic tips available
